DC24 Series

Low voltage LED linear system in multiples lengths for replacement and new retail applications. Download LNR-90 Spec Sheet Download LNR-120 Spec Sheet

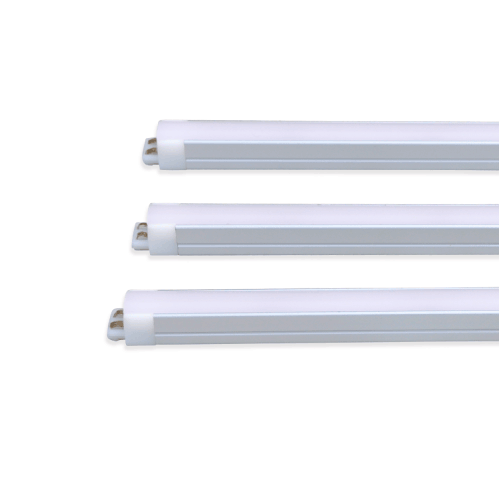

High lumen output LED linear low voltage luminaire.  Ideal solution for retail and architectural applications.

ALL DOWNLOADS

IES FILES SPEC SHEETS PHOTOS

ALL DOWNLOADS

FEATURES

Both Standard (LNR90) and High Output (LNR120) options

Complete system for inline lighting including Linear fixture and Power Rail

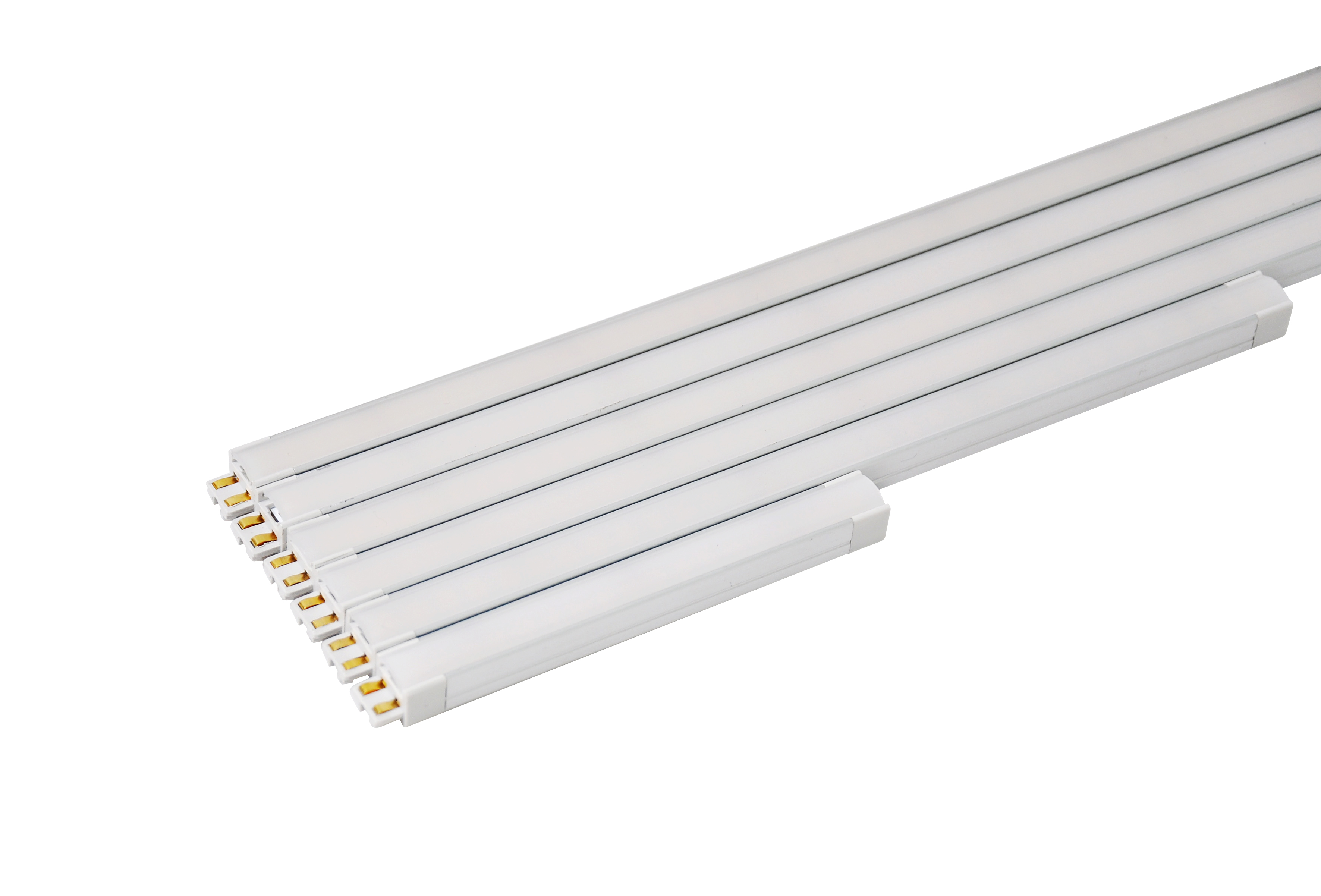

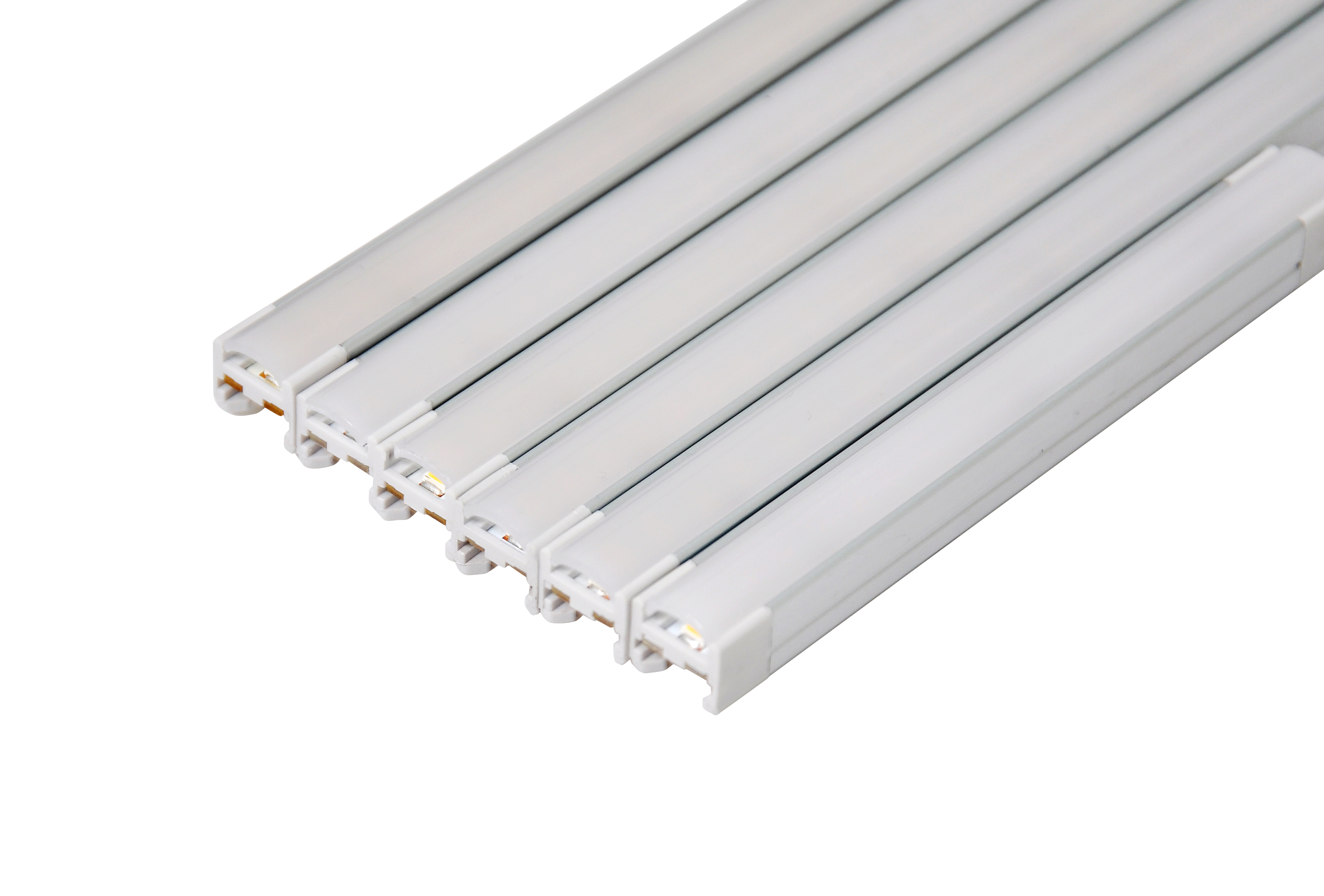

Available in 6 lengths: 3.94″ to 44.22″

Aluminum finish available in White, Silver and Black finishes

24DC Drivers

Variety of accessories and connectors available

Side feed units available for continuous runs

Dimming 100% to 10%,  Compatible with most dimmers

UL, ETL and DLC Listed

Lifespan 50,000 hours

Warranty 5-year warranty

WATTAGE AND LUMENS

Wattages:

  • LNR-90 & LNR-120 – 1W, 3W, 4W, 7W, 11W, 15W

Lumen Output:

  • LNR-90 – 90, 270, 360, 630, 990,1350lm/W
  •  LNR-120 HO – 120, 360, 480, 840,1320, 1800lm/W

Drivers:

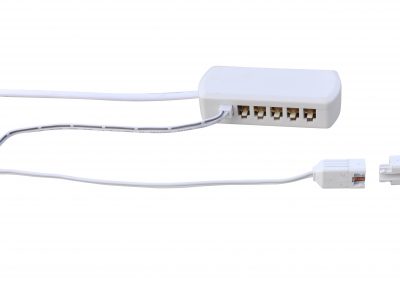

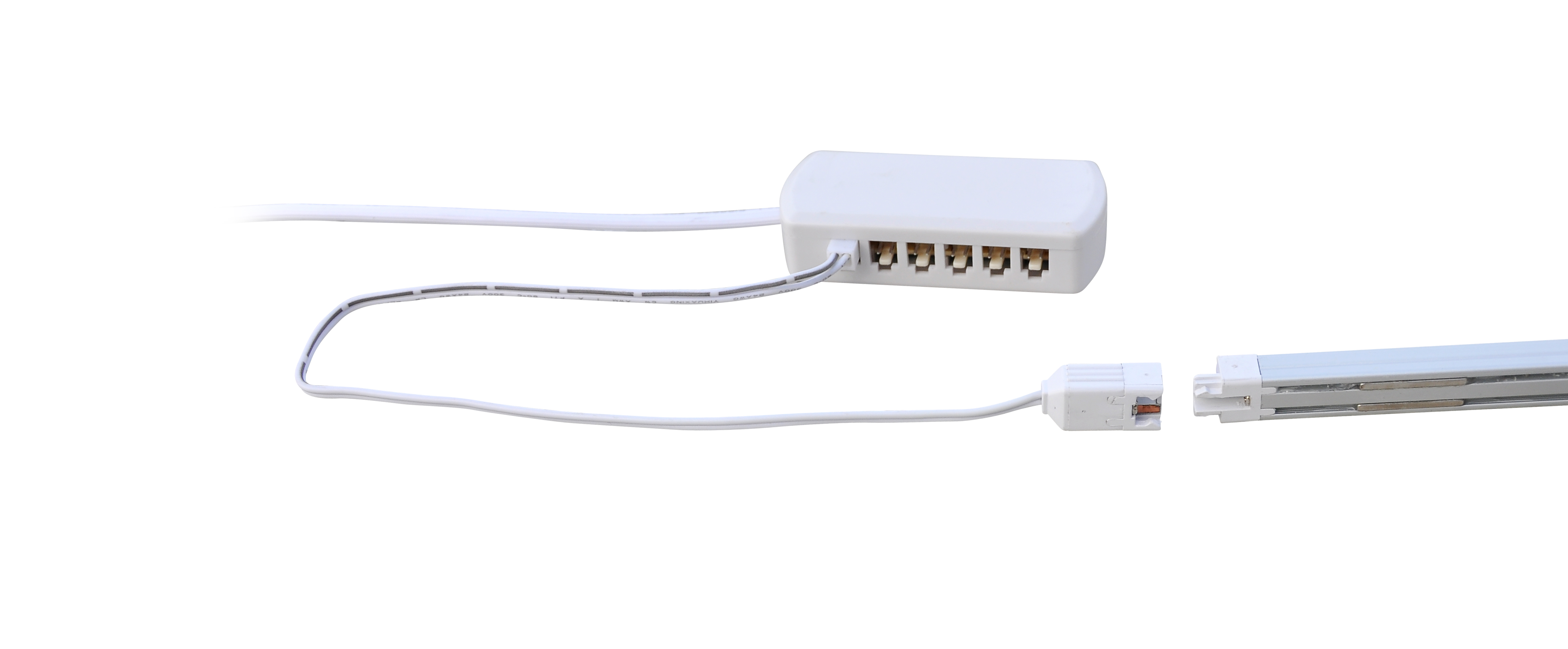

  • 30W, 60W, 100W – 24V driver with distribution hub and U.S. Nema style 120V plug
  • 30W, 60W, 100W – 24V driver with distribution hub and Euro Style two prong plug

COLOR TEMP

2200ºK

2700ºK

3000ºK

3500ºK

4000ºK

5000ºK

Up to 90 CRI



MOUNTING AND ACCESSORIES

Variety of Accessories available:

Power & Connectors:

  • Standard 8 ft Power Connector from Driver to Fixture

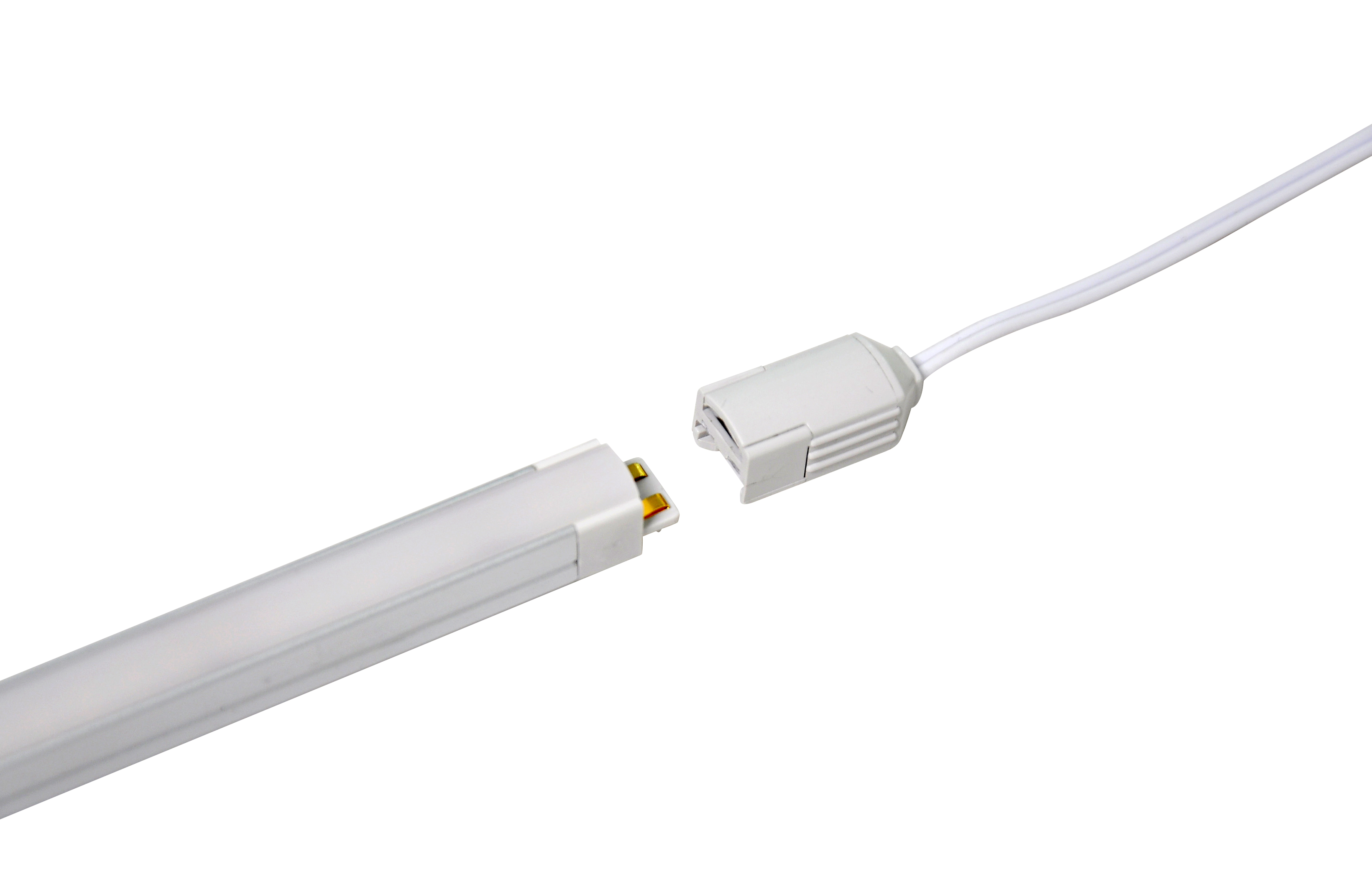

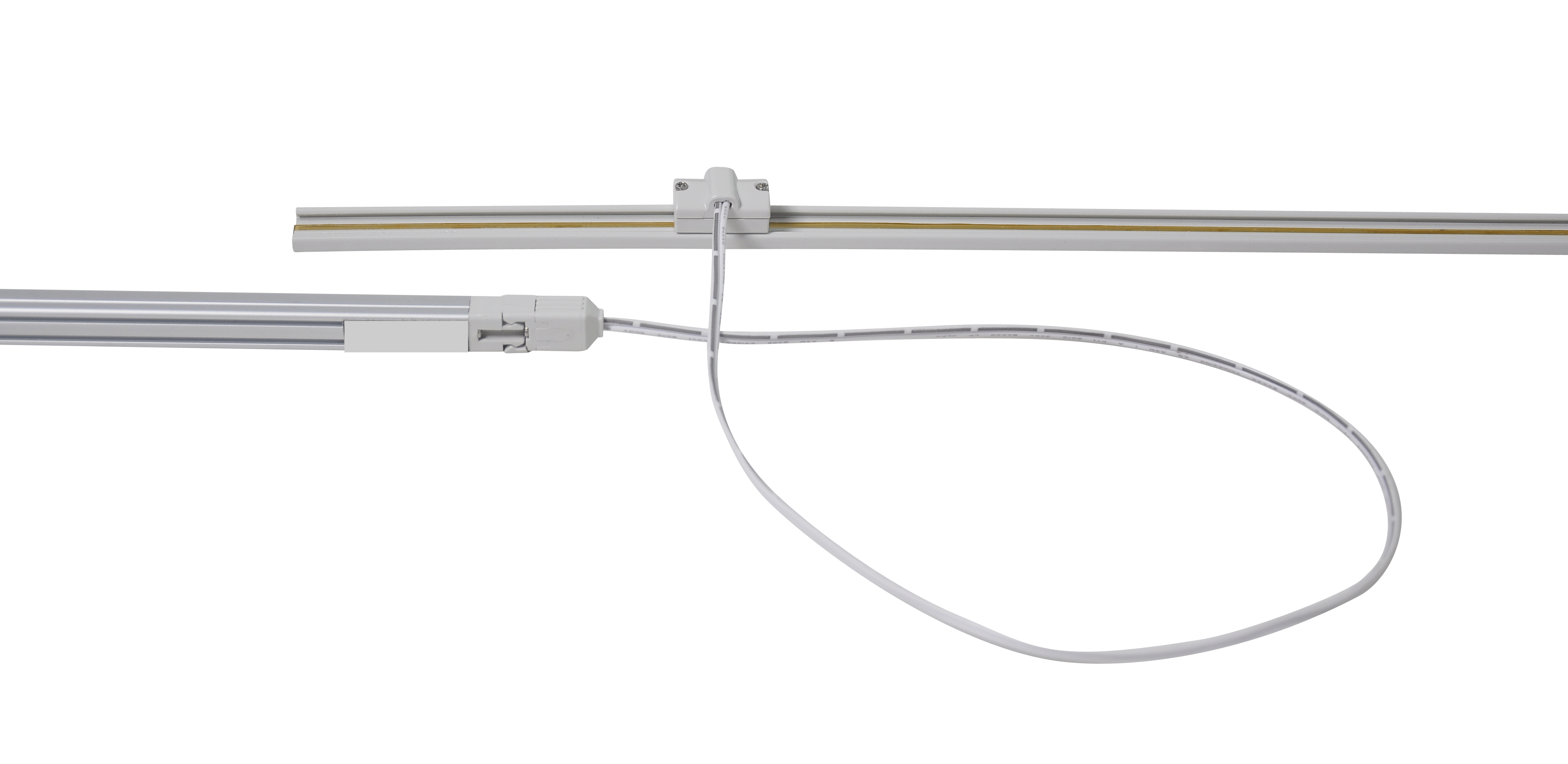

  • Power Connector from Power Rail to fixture

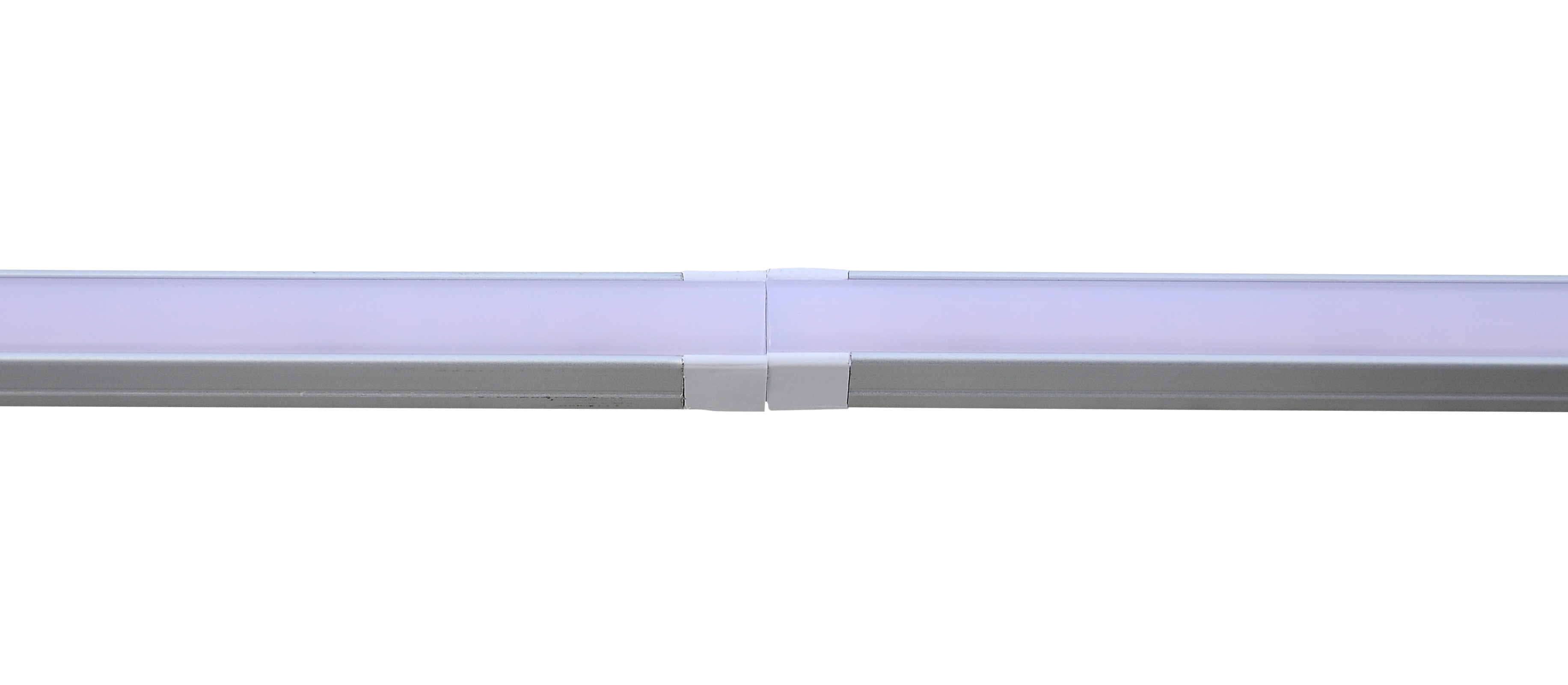

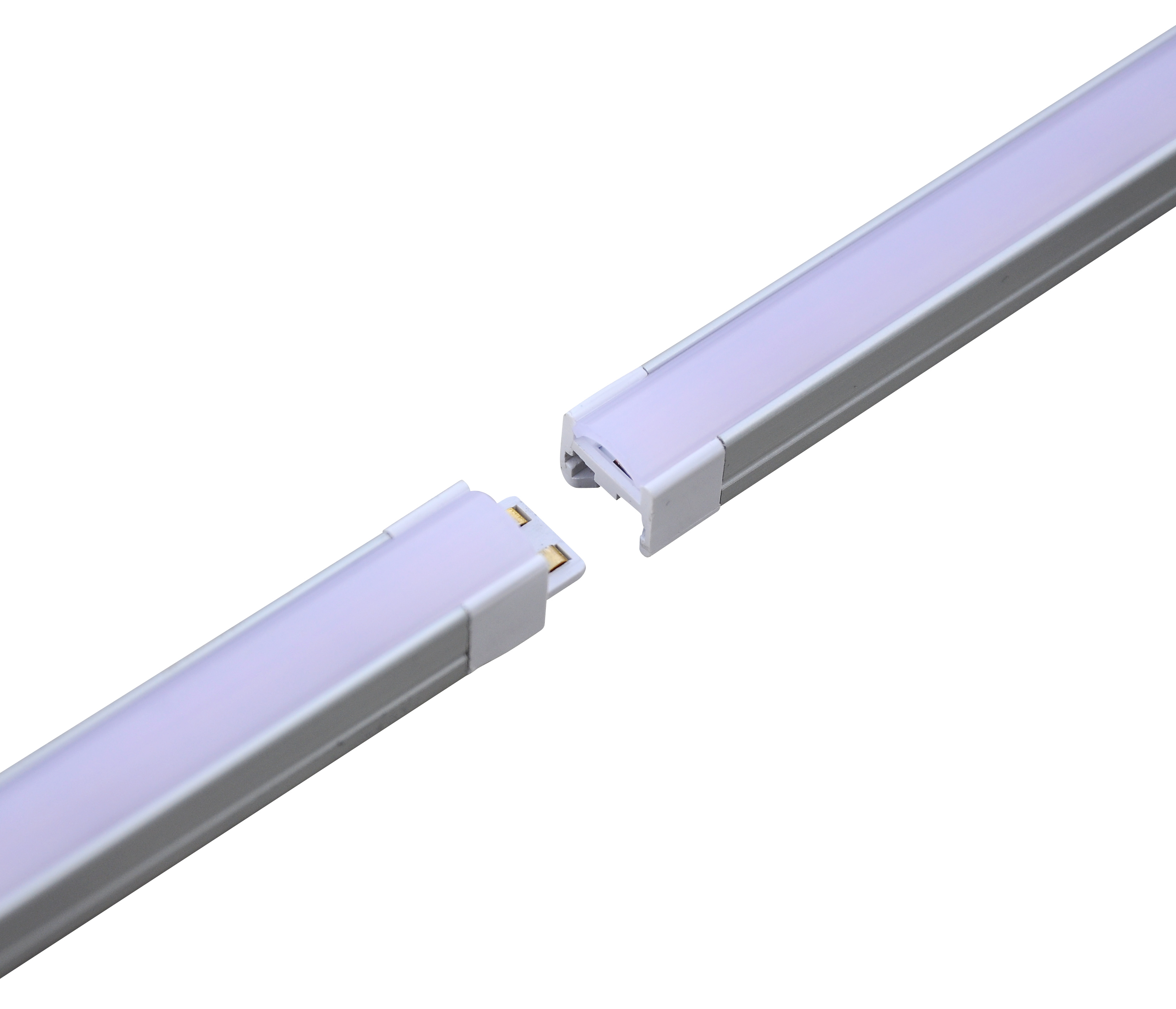

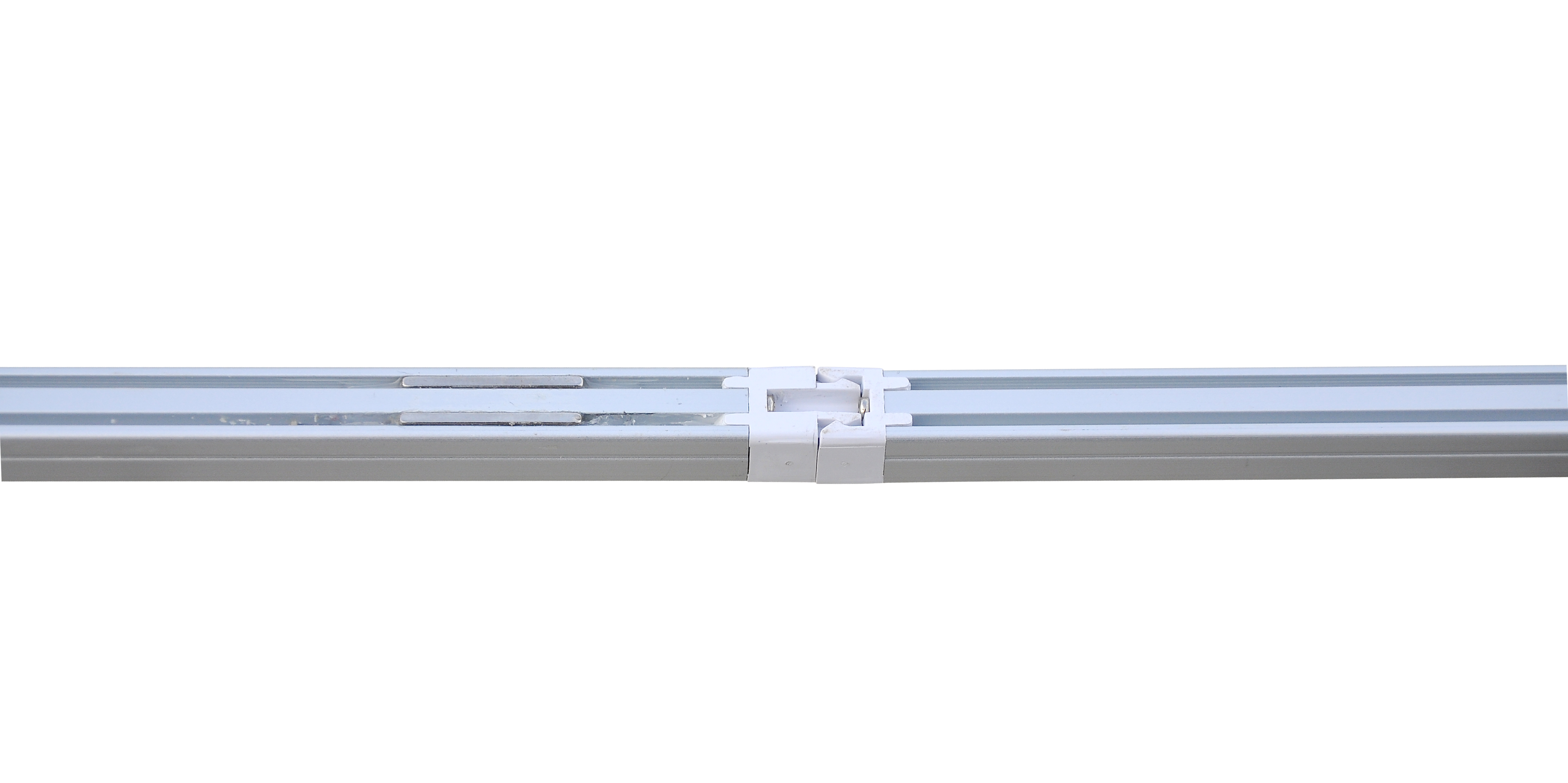

  • 6”,12″, 24″, 48″ Connecting Cables (Fixture to Fixture)

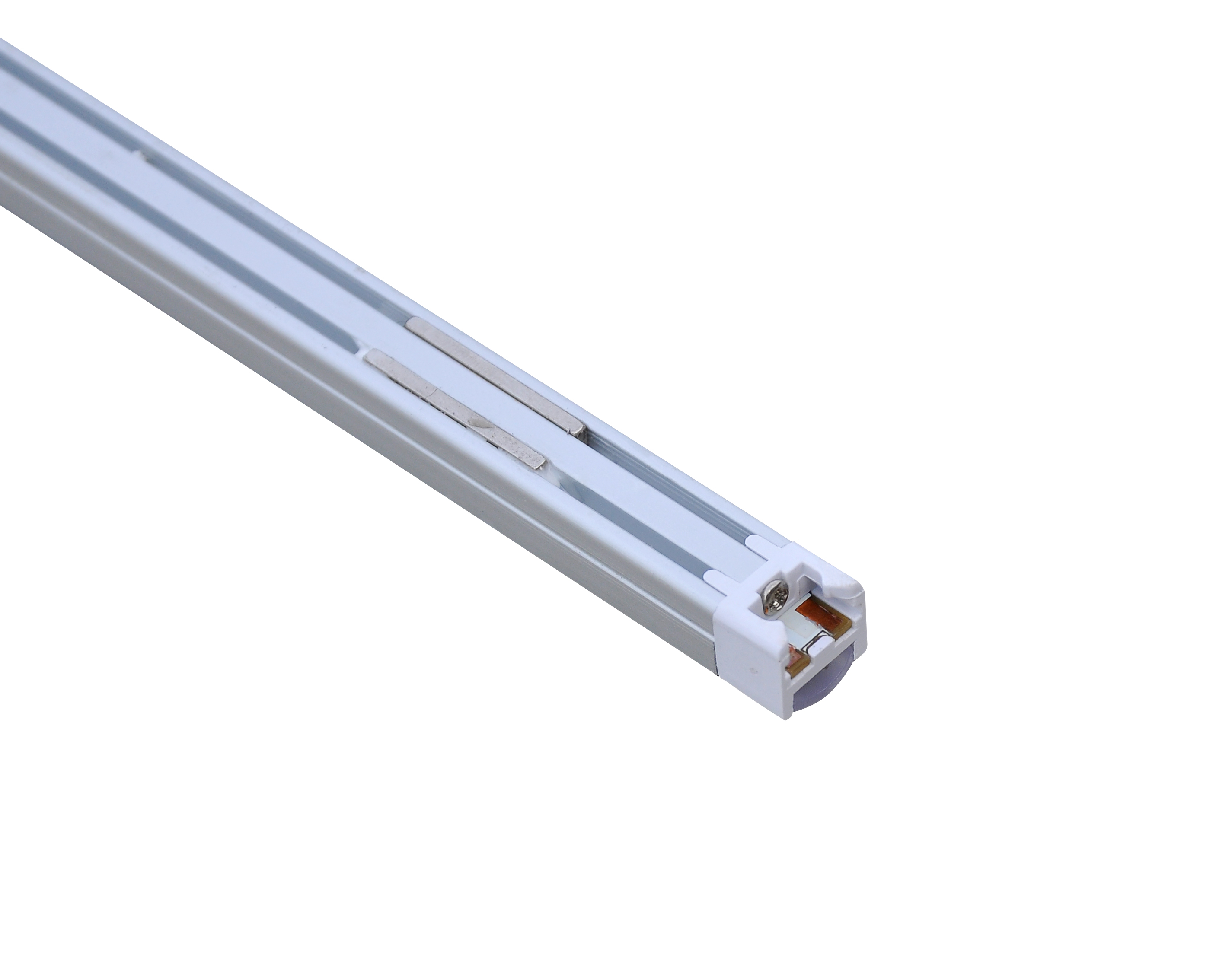

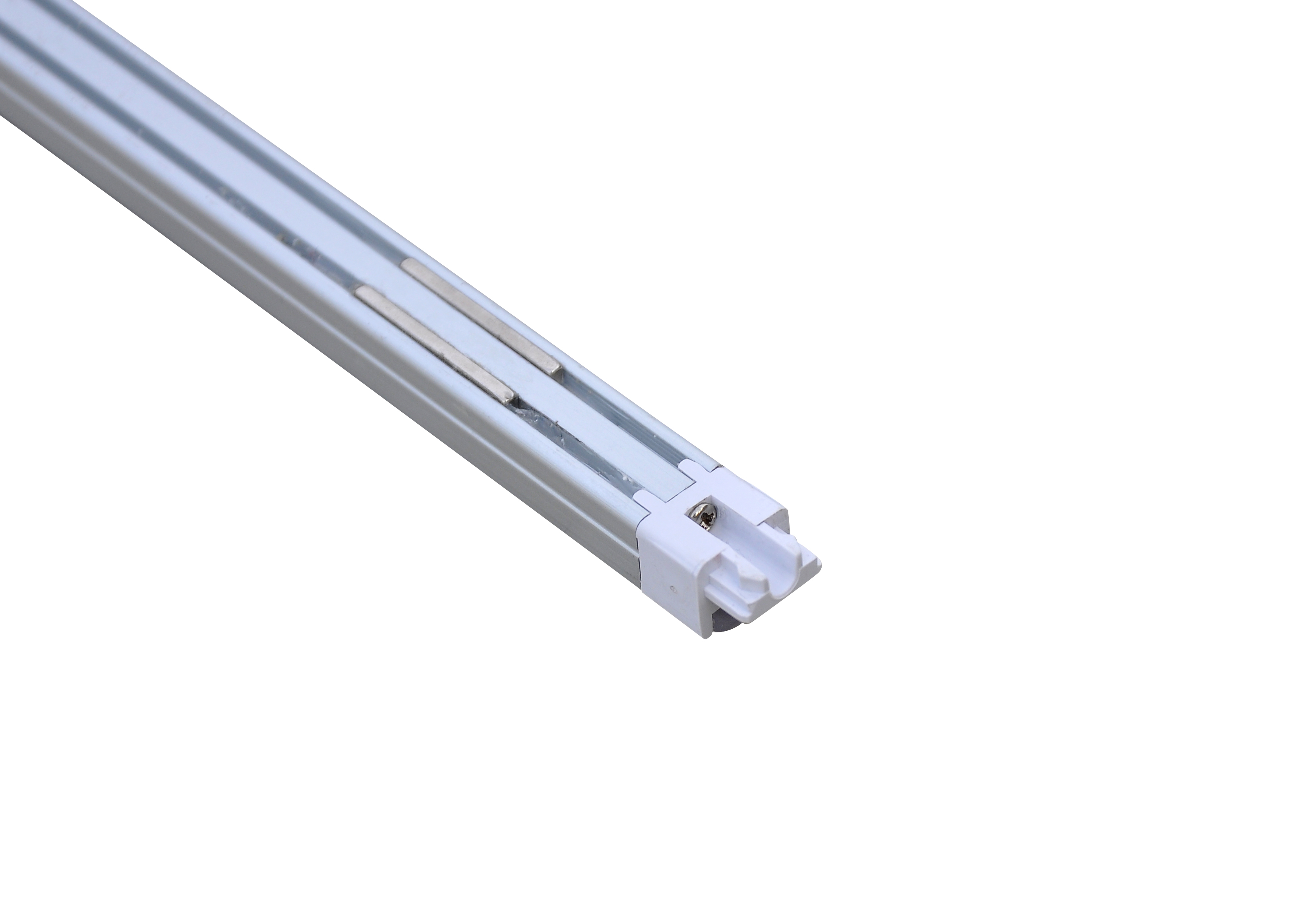

  • Metal Mounting Brackets
  • Side feed units available for continuous runs

Power Rail:

  • Standard 60 foot Reel
  • Mounts with Double sided 3M tape
  • Cut to length in field
  • Metal Mounting Brackets

Drivers:

  • 120V – 30/60/100 watt
  • Euro Voltage – 30/60/100 watt

Sensors and Switches:

  • coming soon



Attain DC24 Series Mounting & Accessory Options
