Recessed Downlight
An energy efficient multihead recessed downlight that is ideal for retrofit and new architectural lighting solutions for indoor IP20 projects. Download Spec Sheet
Multi-head downlight ideal for commercial and retail applications. Available in five popular sizes with the four-head available in a choice of rectangular or square.
ALL DOWNLOADS
IES FILES SPEC SHEETS PHOTOS
FEATURES
Purpose Independently adjustable multi-head indoor LED luminaire

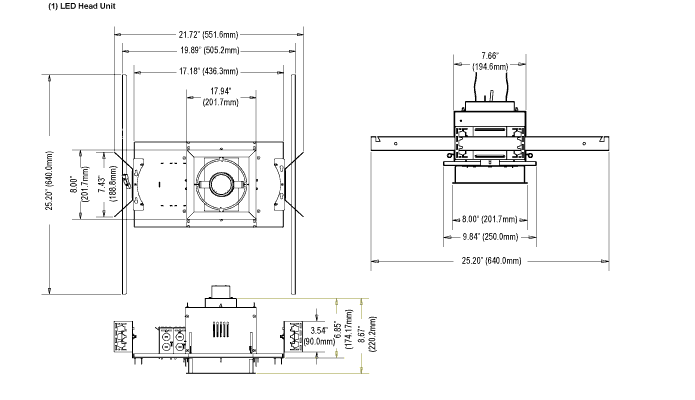

- (1) LED Head15W

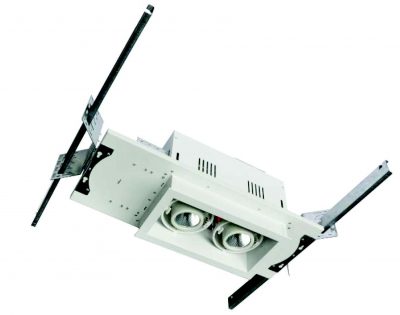

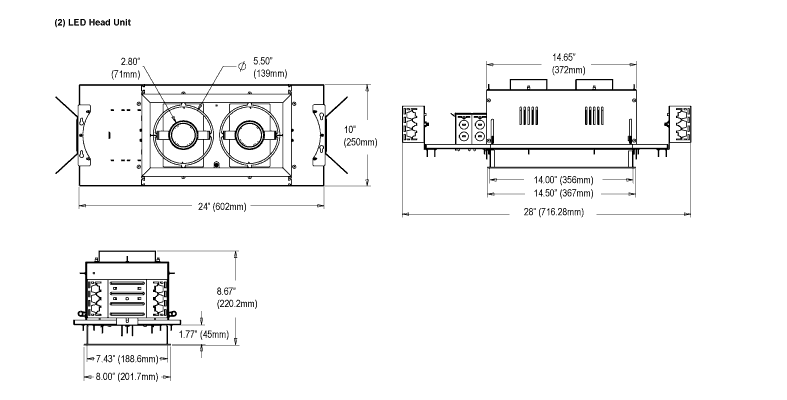

- (2) LED Head

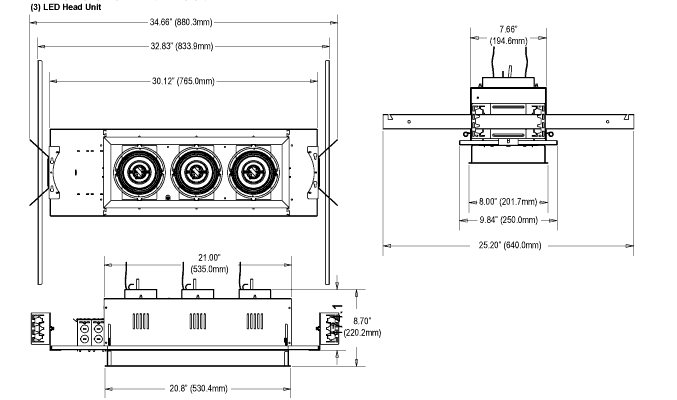

- (3) LED Head

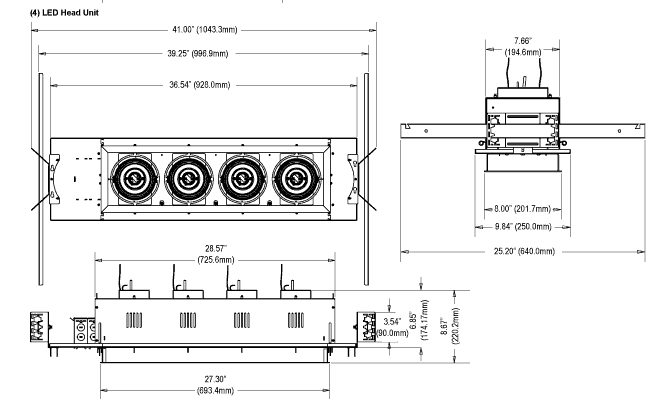

- (4) LED Head (square or rectangle)
Aluminum luminarie body(s) within ETL rated IC enclosure with integral driver
Finish Fixture (front facia and fixture head(s) available in White or Black
Color Temp. 3000ºK, 3500ºK, 4000ºK and 5000ºK available. Beam Spread 24º beam spread Output Up to 4300 Lumens
Dimming 100% to 10% / Compatible with most dimmers
Lifespan 50,000 hours
5-year warranty
DLC and ETL listed
WATTAGE AND LUMENS
Wattages:
- 15W
- 30W
- 45W
- 60W
Lumen Output:
- 1 LED Head 1,200Lm / 15 W / 75Lm/W
- 2 LED Head 2,400Lm / 30 W / 75Lm/W
- 3 LED Head 3,600Lm / 45 W / 70Lm/W
- 4 LED Head 4,300Lm / 60 W / 70Lm/W
COLOR TEMP
3000ºK
3500ºK
4000ºK
5000ºK
82 CRI
95 CRI
Beam Spread 24º beam spread
Output Up to 4300 Lumens
MOUNTING
Standard Hanger-Bar Mounting
