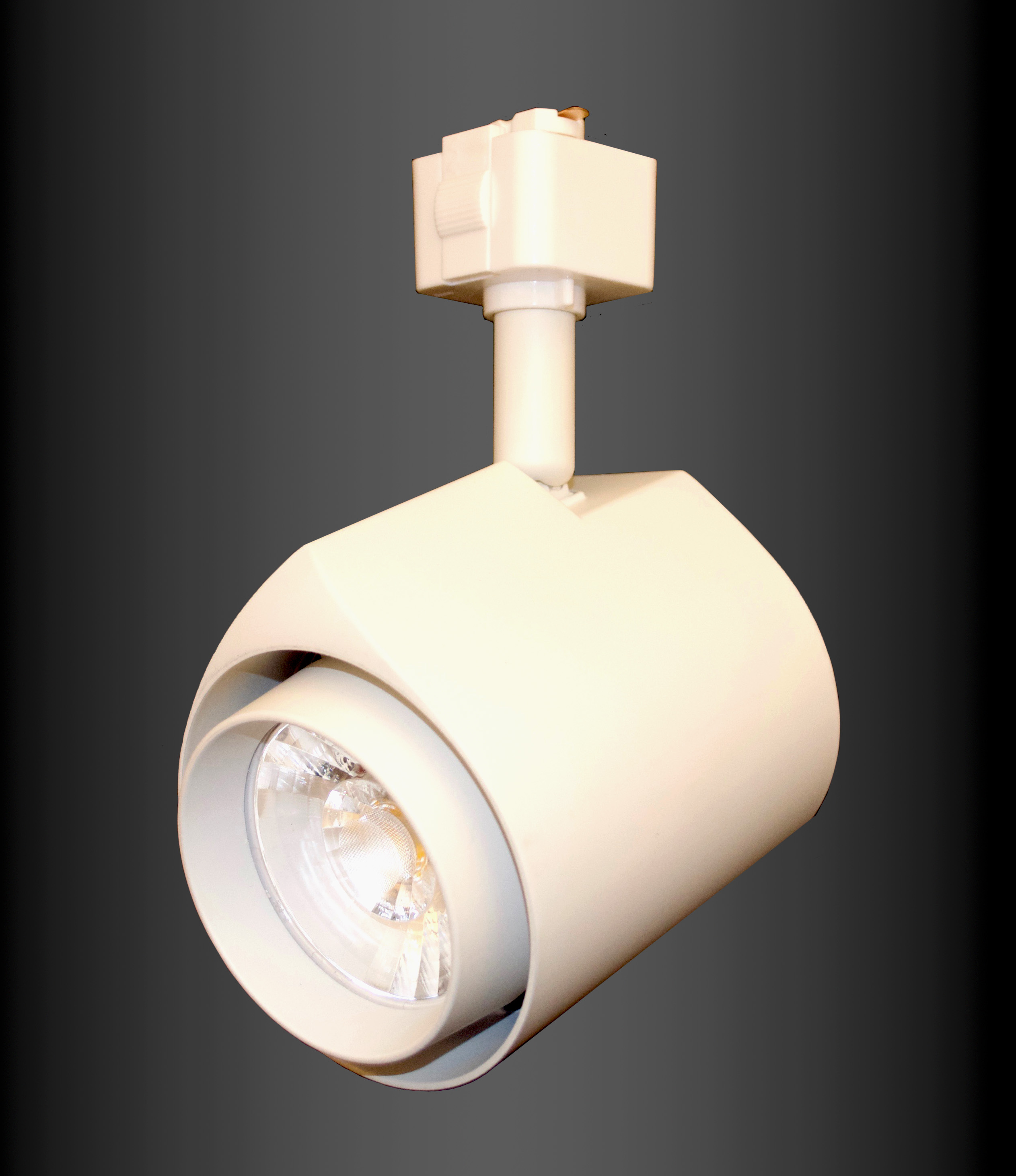

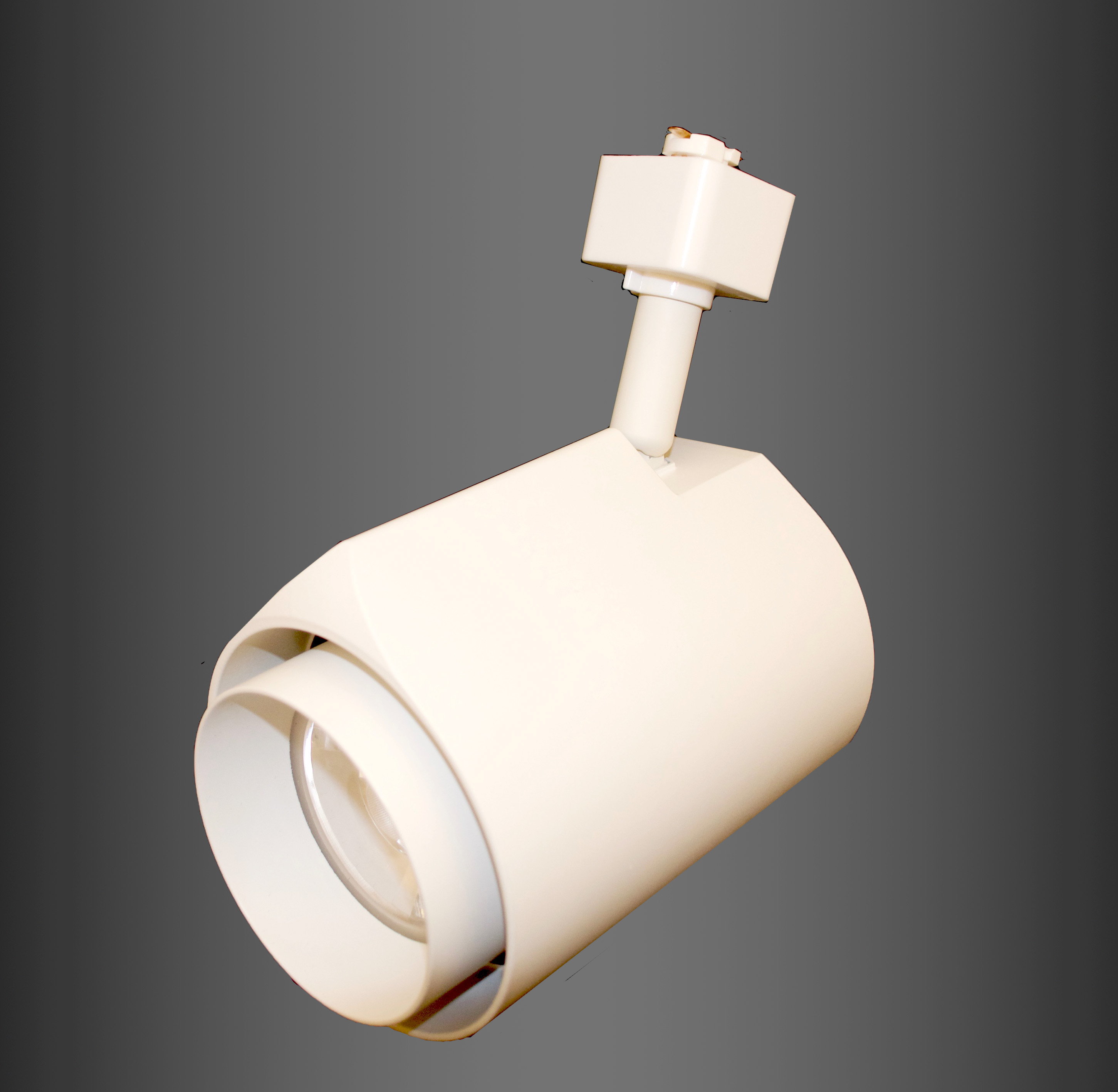

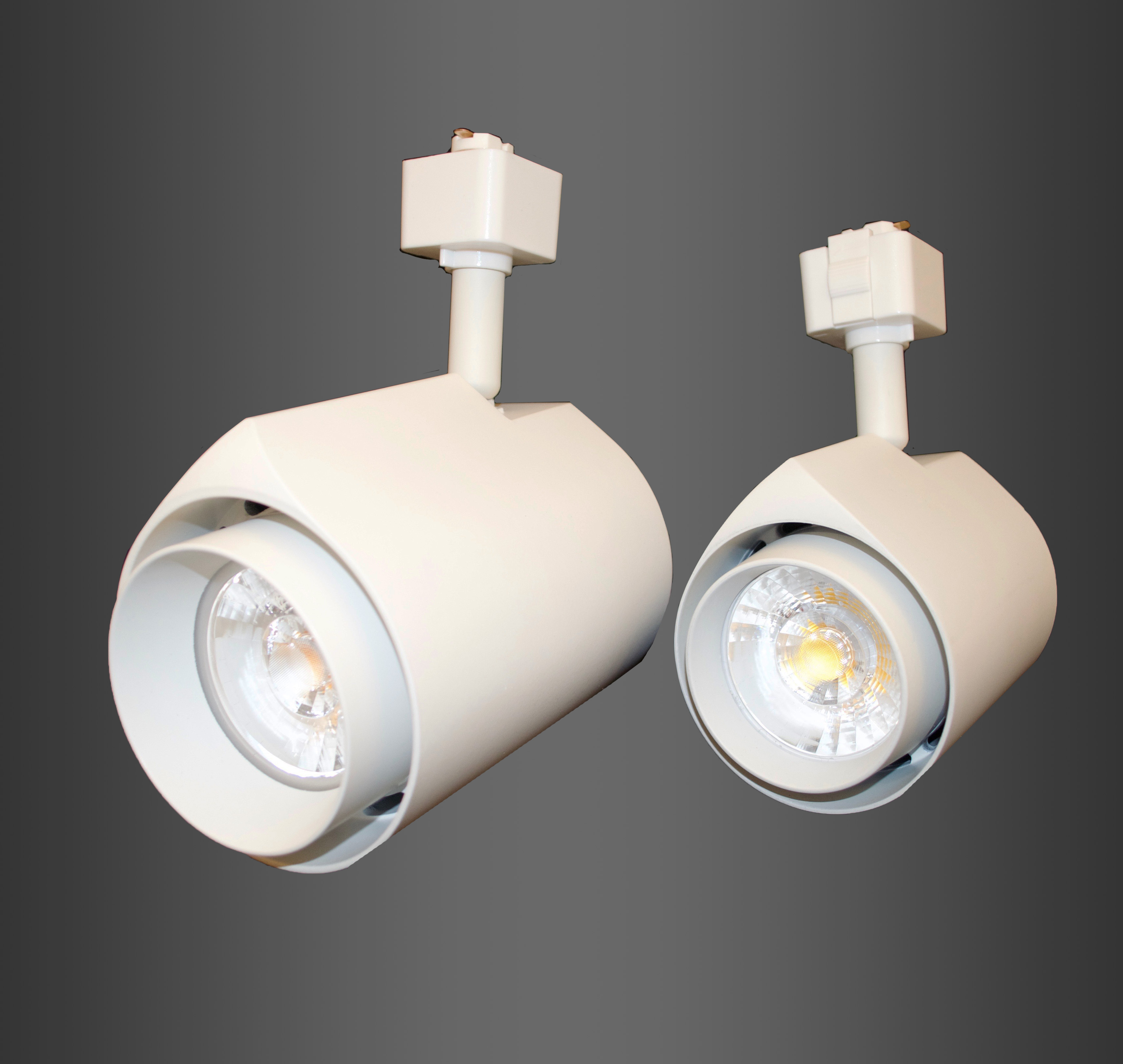

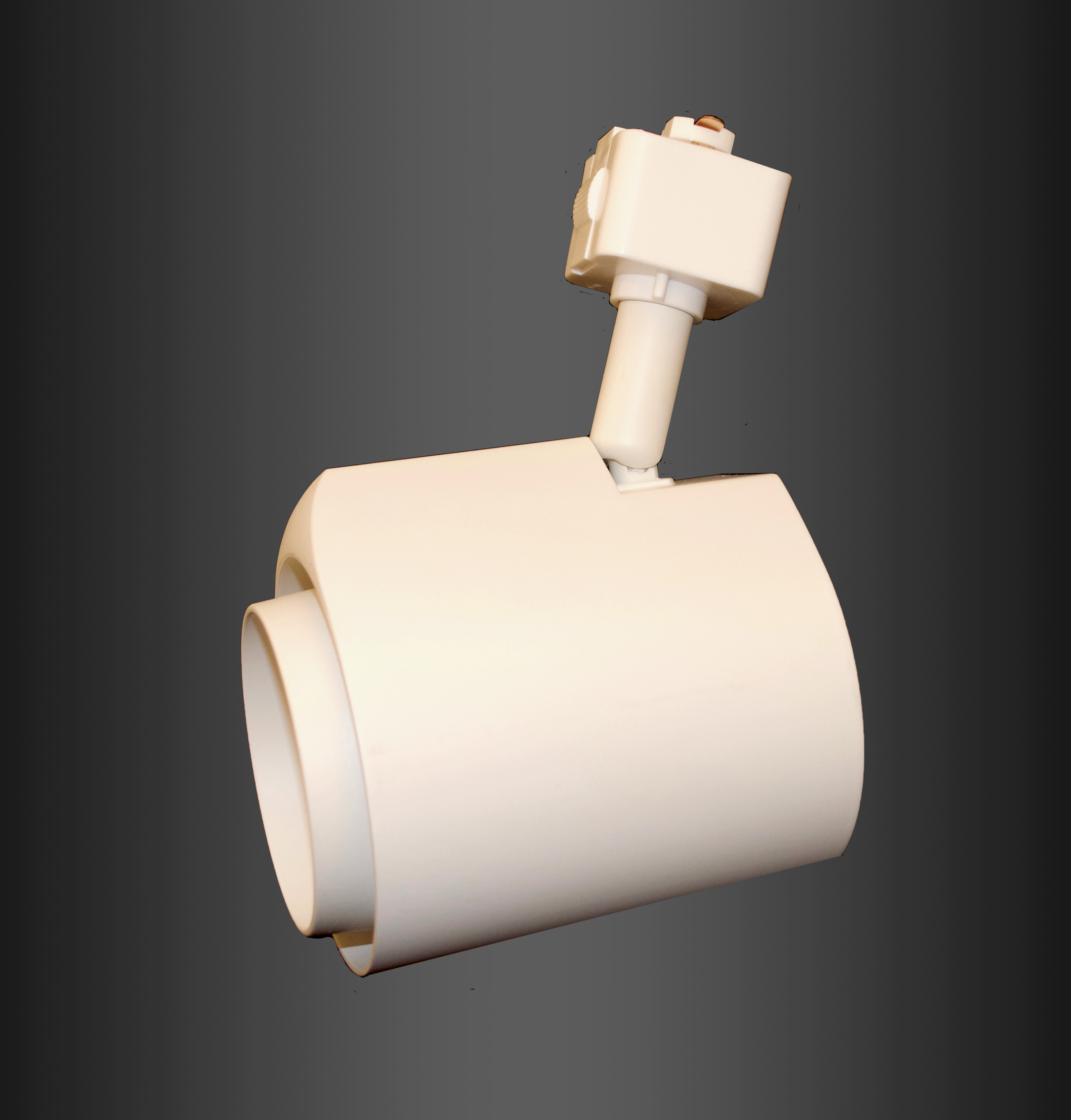

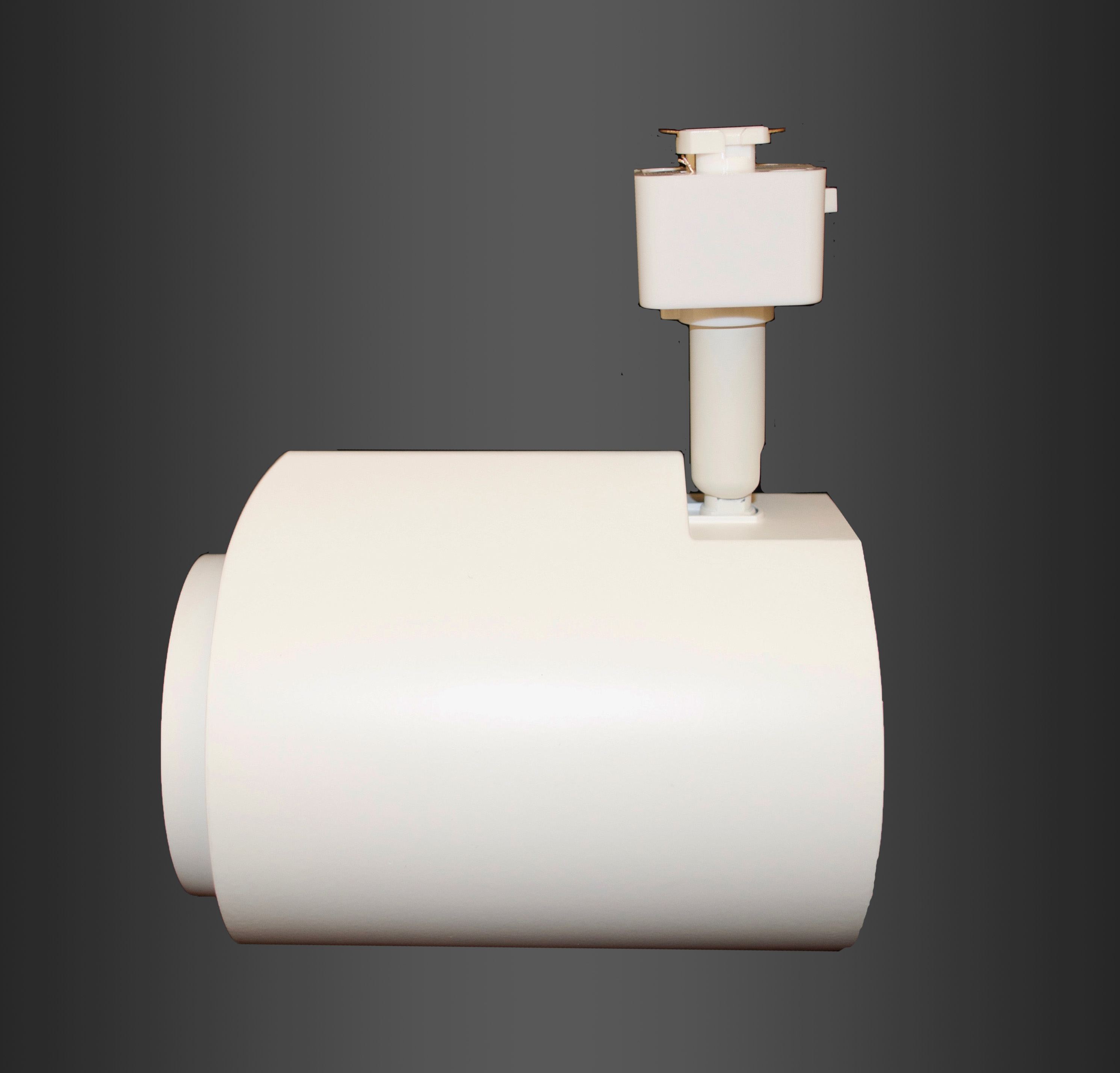

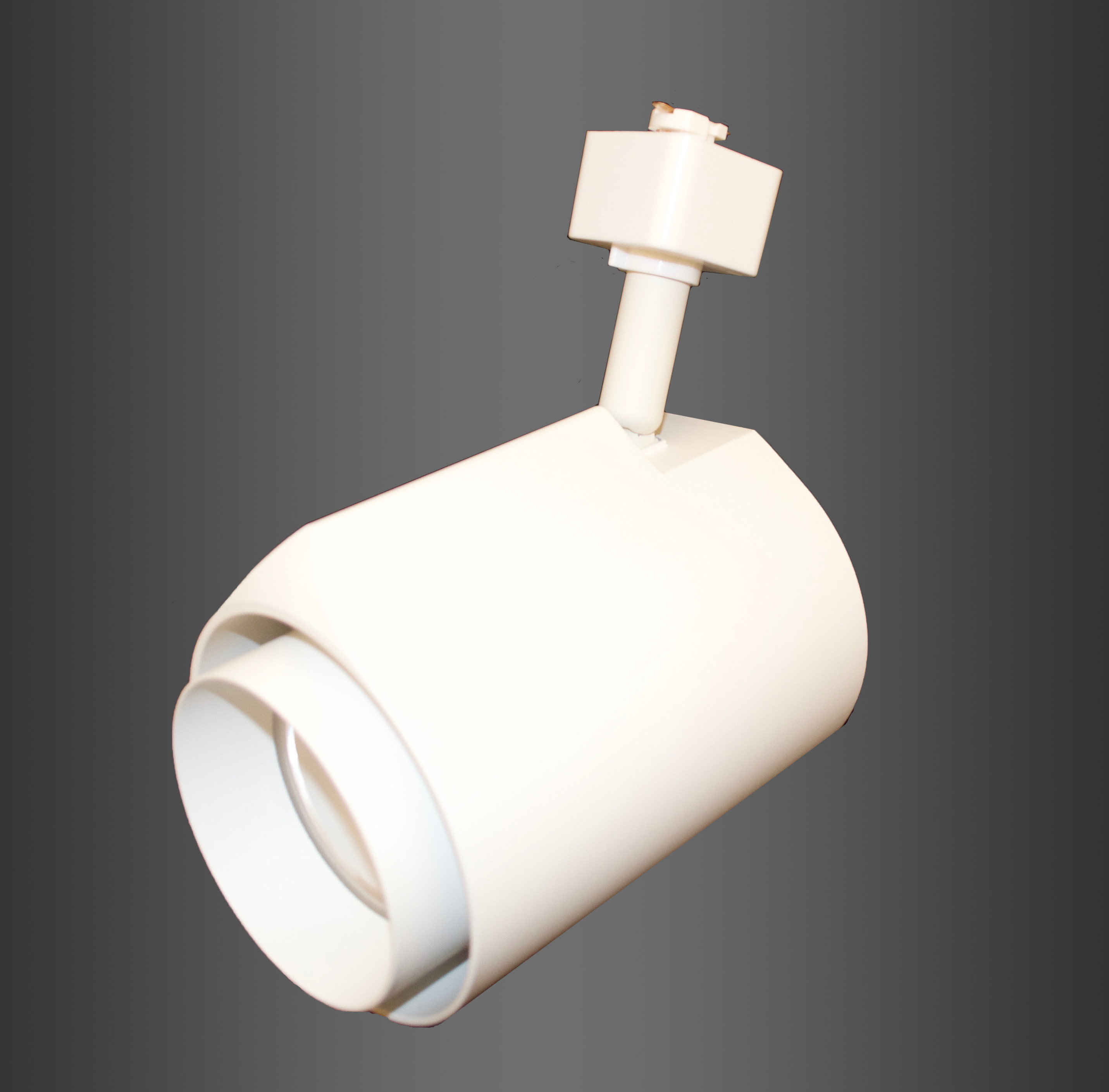

Water Drop Track Lighting
A stylistic line voltage LED Track head ideal for retail applications in both new and retrofit applications. Download Spec Sheet
Line Voltage LED track heads with a modern shape. Ideal for replacement and new retail applications. ETL Listed as is for use with many track types.
ALL DOWNLOADS
IES FILES SPEC SHEETS PHOTOS
FEATURES
Adjustable LED track head featuring Cameta lens with anti-glare lens
Aluminum body available in White, Silver and Black finishes
Beam Spread 15º, 24º, 38º and 60º
Dimming 100% to 10%, Compatible with most dimmers
DLC and ETL Listed
Lifespan 50,000 hours
Warranty 5-year warranty
WATTAGE AND LUMENS
Wattages:
- 10W
- 15W
- 22W
- 35W
- 45W
Lumen Output:
-
Up to 780Lm / 78Lm/W
-
Up to 1,200Lm / 80Lm/W
-
Up to 2,100Lm / 95Lm/W
-
Up to 3,000Lm / 86Lm/W
-
Up to 4,100Lm / 91Lm/W
COLOR TEMP
2700ºK
3000ºK
4000ºK
MOUNTING
Mounting Compatible with
- H-type
- J-type
- L-type
- Global type track mounts
Attain LED Water Drop Track Head Mounting & Options
Water-drop-track-head-10W-Dim
10W
Water-drop-track-head-15-22W-Dim
15 & 22W
Water-drop-track-head-35W-Dim
35W
Water-drop-track-head-45W-Dim
45W
Track Head-G
Global Mounting
Track Head-L
L-Type Mounting
Track Head-J
J-Type Mounting
Track Head-H
H-Type Mounting
