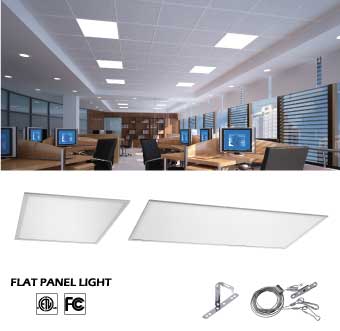

LED Panels
The ideal solution for retrofit and new architectural lighting solutions for indoor IP20 projects. Download 2'x2' Spec Sheet Download 2'x4' Spec Sheet

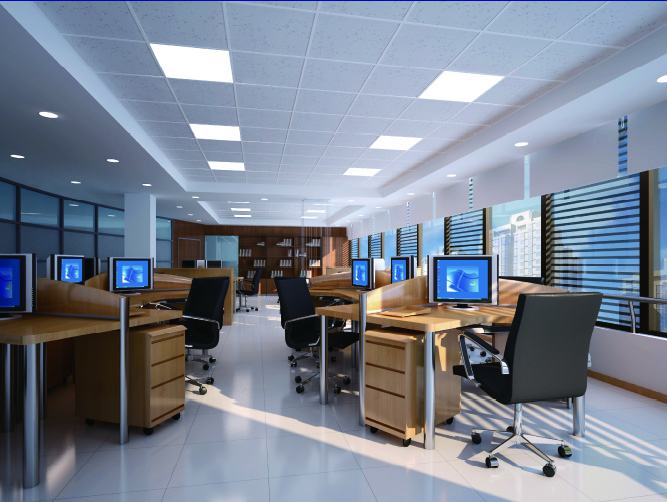

LED Panels provide the ideal solution for retrofit and new architectural lighting solutions for indoor IP20 projects. Two popular sizes with new and retrofit installation available.
ALL DOWNLOADS
IES FILES SPEC SHEETS PHOTOS
FEATURES

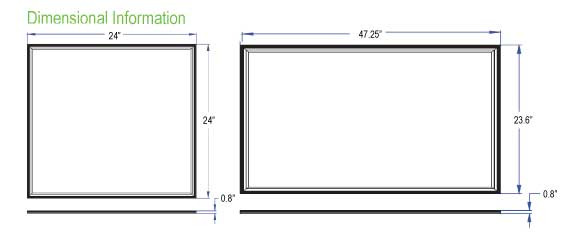

Two Sizes:
T-bar retrofit LED panel for indoor IP20 projects.
Aluminum body with polycarbonate lens
Available in White or Silver trim
Warranty 5-year warranty
WATTAGE

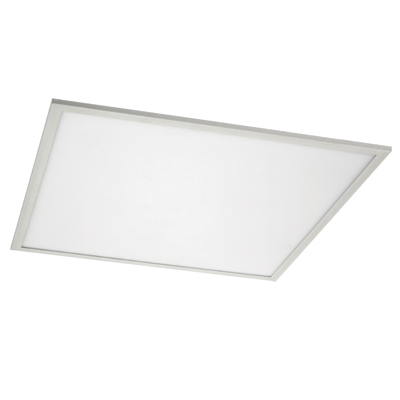

2’x2′
- 36W
- 30W
- 25W

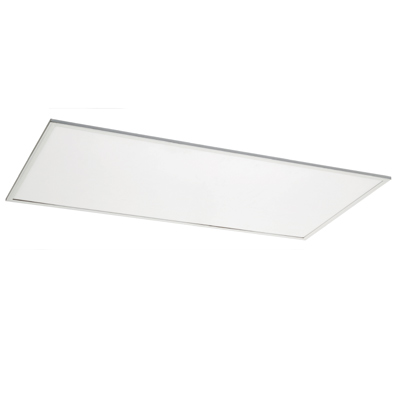

2’x4′
- 54W
- 45W
- 40W
LUMENS
22 Series ( 2’x2′ with 3 outputs)
- 4,680 lumens / 36 W / 120Lm/W
- 3,900 lumens / 30 W / 120Lm/W
- 3,250 lumens / 25W / 120Lm/W
24 Series (2’x4′ with 5 outputs)
- 7,800 lumens / 60 W / 130Lm/W
- 6,500 lumens / 50 W / 130Lm/W
- 5,850 lumens / 45 W / 130Lm/W\
- 5,200 lumens / 40 W / 130Lm/W
- 4,680 lumens / 36 W / 130Lm/W
COLOR TEMP
3000ºK
3500ºK
3700ºK
4000ºK
5000ºK
MOUNTING
Mounting Standard – Suspended T-Bar retrofit mount, Recessed or Surface mount
